| Place of Origin: | Guangdong, China |
| Brand Name: | Richmor |
| Model Number: | BK6I-D |
Richmor 4 channel HD mini mobile DVR Car Alarms Driver Alert Sleep Warning Device for taxi truck fleet management
| PRODUCT DESCRIPTION
| |
| Resolution | 4 X 1080P AHD Full real-time recording |
| Moduel | G-Sensor built in, GPS /3G/4G /WIFI Optional |
| Storage | Max support 2X256 GB SD card |
| Alarm I/O | 2CH Alarm input, 1CH Alram output |
| Working temperature | -40℃ to 70℃ |
| Voltage | 10V-36V Wide range voltage power supply |
| Main Features |
| PRODUCT SHOW |
Latest Windows 10 style User Interface

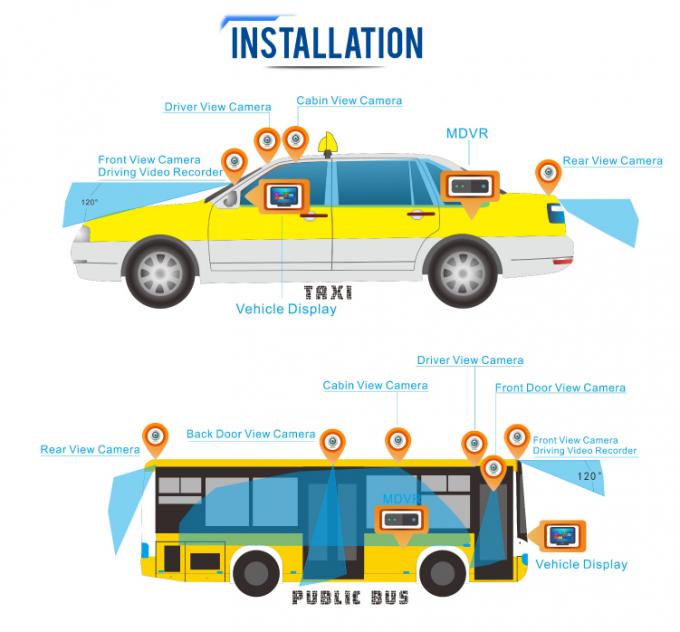

Using with Richmor i Wei Bao for Convenient Installation and Maintenance
| Datasheet |
| Item | Parameter | |||
| OS | Linux | |||
| Language | Chinese/English/Others(can be customized) | |||
| Video Compression | H.265 | |||
| GUI | Support external LED screen, configuration via remote control or USB Mouse | |||
| OSD | Overlays information such as date time and vehicle ID | |||
| Video Record System | Video Input | 4CH in 1CH, and support 3CH AHD 1080P /720P | ||
| Video Output | 1CH AV Output | |||
| Preview | 1CH, 2CH,4CH optional | |||
| Video Quality | 0-7 levels, 0 is the highest level, 7 is the lowest level. | |||
| Resolution | 1080P/720P/D1/HD1/CIF; support 4CH full 1080P | |||
| Record Mode | ACC Power on.Timed recording, alarm recording | |||
| Audio | Audio Input | 2CH ,(1CH built-in , 1CH External) | ||
| Audio Output | 1CH | |||
| Compression | G.726, G711a optional | |||
| Alarm | Input | 5CH | ||
| Output | 1CH | |||
| Storage | Max support 2X256GB TF Card | |||
| Communication Port | 2CH RS232, 1CH RS485 | |||
| TTS | TTS Alert broadcasting | |||
| Wireless transfer | Support Built-in 3G/4G network, WCDMA,CDMA2000, TTD-LTE, FDD-LTE compatible with GPRS,EDGE; Optional with WIFI modular (AP, STATION MODE) | |||
| GPS | Support Built GPS/BD Module,can support the ministry of communications | |||
| Video Playback | Video Search | Search video by Record Time/Record Type etc | ||
| Playback | Support max4ch playback. forward or backward play | |||
| Support x 2,x4,x8,x16. forward or backward play | ||||
| Operating Voltage | Voltage Input | 10V ~ 36V DC | ||
| Voltage Output | 12V 2.5A, 1 channel,with IR | 5V 2.5A, 1 channel,with IR | ||
| Power management | Adaptive wide power input, with overload, under-voltage, short circuit, reverse connection and other protection functions; Support the timing switch machine, delay shutdown function. | |||
| Power -off Protection | UPS Technology,All video information can be saved automatically when the power is cut off, and make sure that all the files can not be damaged. | |||
| Power Consumption | Working mode <14W, Standby mode<0.5W | |||
| Other | Operation Temperature | -40℃ ~ + 70℃ | ||
| Humidity | 20% ~ 80% | |||
| Dimension | 135mm*94mm | |||
| Shenzhen Richmor Technology Development CO.,LTD [ 100% OEM Manufacturer, Quality Assured, Price Competitive] | |
|
Contact: Ada Lin Mob: + 86 18938073583 Skype: + 86 18938073583 Website: http://www.mdvrchina.com Company Add: 5th Floor, D Building, Bantian International Center, Bantian, Longgang District, Shenzhen, China. | |
