| Place of Origin: | Guangdong, China, Guangdong, China |
| Brand Name: | RICHMOR, OEM |
| Model Number: | DI3 |
Main features
1.Built in DSM camera(ADAS+BSD optional)
2.MAX support 3ch input(without AI Max 4ch)
3.4G, WIFI GPS optional
4.sd card storage max 512g
5.Bilt in speaker and pick up all in one
Main Functions
1.DSM camera also main host terminal, 4 channels HD video inputs with H.264 compression mode.
2.Strong AI chip with 1.0T computing ability, neuron logical analysis mode, deep learning algorithm.
DSM [Driver State Monitor]: give reminder to driver, send event data and even evidence to platform for
behaviors like: fatigue driving (eye close, yawning), distraction, smoking, making a call, etc.
4. Facial recognition: recognize driver for checking attendance and avoiding unauthorized/certificated driver to
take the drive.
5. ADAS [Advanced Driving Assistant System]: Support FCW(Forward collision warning), HWM(Headway
monitoring), LDW(Lane departure warning), etc.
6. Integrated high-sensitivity 1MIC, 1ch audio input to optional recording and intercom ; integrated 1 speaker,
TTS audio broadcast and efficient warning prompts.
7. Built-in G-SENSOR module, realize automatic alarm upload of abnormal vibration, rollover, impact and
sudden braking
8. Support GPS/BD tracking module to realize the management of speed, position, time and route.
9. Support positioning module abnormality and antenna abnormality alarm
10.Support dual card (SD+TF card) storage, single card supports up to 512G. Support hot swap
11.1 MICRO USB to backup data or device upgrade, 1CH RJ45 to realize AI functions with other normal MDVR.
12.4 alarm inputs, 1 alarm output. ICH RS232 or RS485 optional to extend other peripheral
13.Ultra-low power consumption in sleep mode for GPS tracking, support delay-off recording.
14.Super mini size and easy-installation design. Continuous monitoring under the environment of -30°C~70°.
15.. Free platform software, mobile App, web, client App, for professional and effective fleet management.
Product Parameter
| Operation system | Linux |
Network type | 2G,3G,4G |
RAM | 2GB |
DSM cam | HD 720P cam |
Other cam | HD 720P cam |
Position | Support dual module GPS+BD；Precision ≤10m(95%)； starting time,warm reboot ≤5s, cold reboot ≤45s |
WiFi | 2.4G；IEEE 802.11b/g/n |
Speaker | 8Ω, 1W, with audio cavity |
Microphone | Single microphone, support echo and noise elimination |
G-sensor | 3-axis acceleration sensor |
Loop denoising | Compatible with hardware loop denoising |

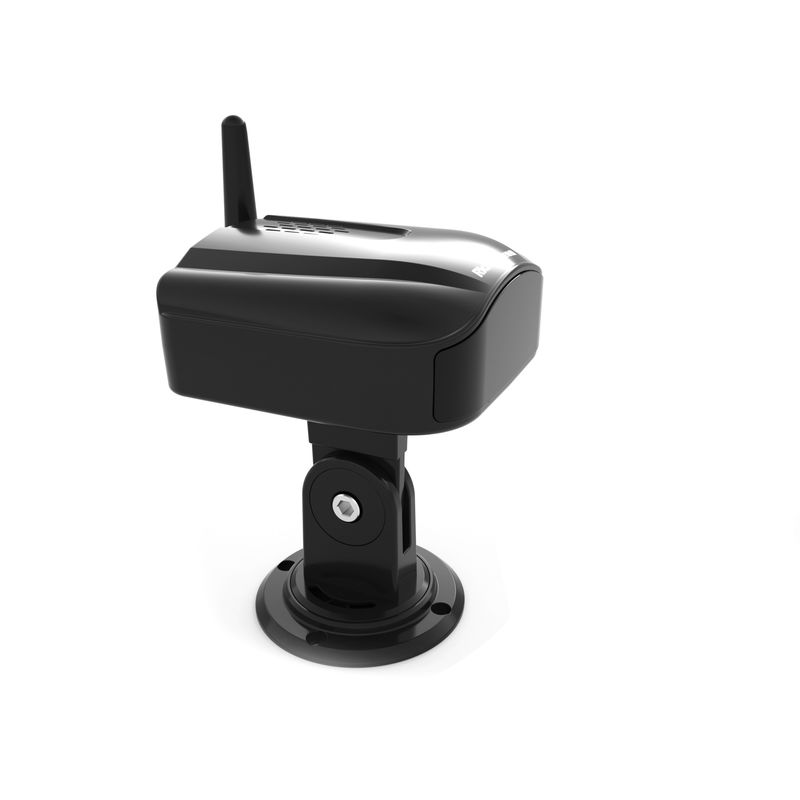

Product Pictures
