Smart ADAS DSM Terminal 4G GPS WIFI 4CH Dashcam With ADAS LDP Collision Warning System

Main Features
1.Mini HD professional driving recorder
2.4CH 1080P HD video recording, 1CH audio recording and intercom
3.GPS+AGPS positioning, 4G remote transmission, wifi download.
4.AI function optional, ADAS, DSM, Driver face recognition
5.Emergency alarm, intelligent voice control, WIFI hotspot, OTA upgrade,etc.
6.Suitable for online car-hailing, taxi, truck, etc

Product Advantages
1.H.265 compression mode, the same image quality stream than H.264 can reduce space and traffic by
40%. Multi-stream recording.

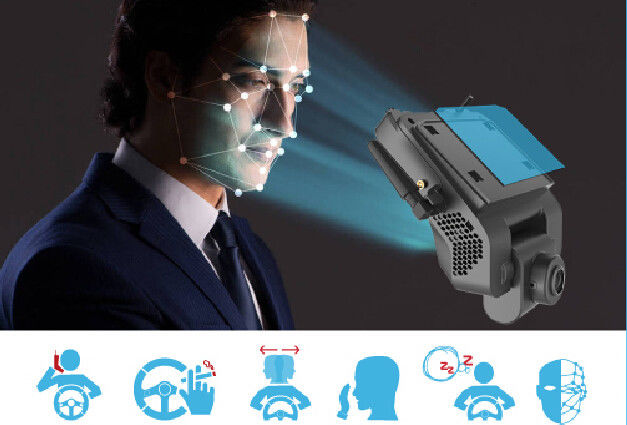

2.Integrate AI functions: DSM/driver State monitor(driver fatigue, distracted, calling, smoking detection) ADAS (LDW,FCW).
3.4CH MDVR, built-in one AHD camera, and support 3CH external.
4.Resolution: Hybrid 1080P / 720P / D1 / HD1 / CIF video, adjustable frame rate and picture quality;
5.New flat interface, support remote control or Mouse via LCD screen, and Mobile Phone APP Configuration directly.
6.Power: vehicle power mode, 8-36V DC wide voltage input; overload, undervoltage, short circuit, reverse connection and other protection circuits, suitable for various vehicles; Provide DC12V power output, a
maximum output of 1.5A for monitor, cameras.
7.Storage: 2sd card slots max (256GB each), anti-vibration, dust-proof design.
8.Easy to install with 3M directly, save 1/10 installation time comparing to normal MDVR
9.Integrated, 1ch camera(angle adjustable), vehicle Microphone, and Speaker, convenient to two-way talk.
10.Four status Led indicators to show device working status
11.Wifi: opitonal. Station mode for device connection with server and auto video donwload, AP mode for terminal APP-Check instead of remote controller and monitor.
12.GPS: two model GPS and customized tracking modular opitonal. Support line departure and area entry and exit alarm, device max can save 16 lines and areas 4G,/3G : Integrated 3 / 4G compatible for all countries.
13.G-SENSOR: build in g-sensor automatic alarm upload of abnormal vibration, rollover, impact, and sudden brake
14.5CH alarm input(SOS, reversing, L-Beam Left-Ind,over speed, remote cut off/on...) , 1CH of alarm output, support photo capturing manually
15.Extend function: 1CH USB video download, 2CH RS232 and 1CH RS485 for fuel sensor, temperature sensor,PTZ control...
16.Support TTS alert function, English
17.Sleep mode, recording mode, timing mode, Delay off recording .
18.Software: Linux server software, with client App, mobile App, Web for live recording and commercial fleet management.
19.Working temperature: -40℃ to 70℃. Supports low temperature startup & working, a highly reliable heat dissipation design

Product Parameter
