Home > products >
Dashcam DVR
>
Car Monitoring System Mini 4g Dashcam With GPS Tracking And APP Control

Car Monitoring System Mini 4g Dashcam With GPS Tracking And APP Control

Product Details:
Place of Origin: Guangdong, China
Brand Name: Richmor
Model Number: RCM-DI3
Detail Information
Place of Origin:
Guangdong, China
Brand Name:
Richmor
Model Number:
RCM-DI3
Year:
2014-, 2016-, 2015-, 2015-
Model:
S3 / S3L Closed Off-Road Vehicle, H6 Bus, H2 / H2E / H2V MPV, S6 Closed Off-Road Vehicle
Type:
Video Recorder, DASH CAM
Car Fitment:
BAIC HUANSU
Screen Type:
NO
Screen Size:
No Screen
Angle:
130°
Resolution:
720P
Function:
NIGHT VISION, Remote Control, G-Sensor, Loop Recording, Build-in WiFi, APP Control, Voice Interaction, Build-in GPS, Emergency Accident Lock, ADAS
Voltage:
8-36V
Working Temperature Range:
-40 - 70 ℃
Warranty:
1 Year
Product Name:
Dashcam
Operation System:
Lunix
Video Resolution:
720P
Channel:
Max 4ch
Communication Interface:
1CH RS232
Network Type:
3G/4G
Alarm Input:
4CH IO Alarm Input
GPS:
YES
G-sensor:
YES
WIFI:
YES
High Light:

High Light

High Light:

mini 4g dashcam

,

car 4g dashcam

,

car dashcam dvr

Trading Information
Minimum Order Quantity:
2 pieces
Price:
Negotiable
Packaging Details:
Richmor package or OEM/ODM as customers' request
Supply Ability:
2000 Piece/Pieces per Month
Product Description

Main features
1.Built in DSM camera(ADAS+BSD optional)
2.MAX support 3ch input(without AI Max 4ch)
3.4G, WIFI GPS optional
4.sd card storage max 512g
5.Bilt in speaker and pick up all in one

Main Functions
1.DSM camera also main host terminal, 4 channels HD video inputs with H.264 compression mode.
2.Strong AI chip with 1.0T computing ability, neuron logical analysis mode, deep learning algorithm.
DSM [Driver State Monitor]: give reminder to driver, send event data and even evidence to platform for
behaviors like: fatigue driving (eye close, yawning), distraction, smoking, making a call, etc.
4. Facial recognition: recognize driver for checking attendance and avoiding unauthorized/certificated driver to
take the drive.
5. ADAS [Advanced Driving Assistant System]: Support FCW(Forward collision warning), HWM(Headway
monitoring), LDW(Lane departure warning), etc.
6. Integrated high-sensitivity 1MIC, 1ch audio input to optional recording and intercom ; integrated 1 speaker,
TTS audio broadcast and efficient warning prompts.
7. Built-in G-SENSOR module, realize automatic alarm upload of abnormal vibration, rollover, impact and
sudden braking
8. Support GPS/BD tracking module to realize the management of speed, position, time and route.
9. Support positioning module abnormality and antenna abnormality alarm
10.Support dual card (SD+TF card) storage, single card supports up to 512G. Support hot swap
11.1 MICRO USB to backup data or device upgrade, 1CH RJ45 to realize AI functions with other normal MDVR.
12.4 alarm inputs, 1 alarm output. ICH RS232 or RS485 optional to extend other peripheral
13.Ultra-low power consumption in sleep mode for GPS tracking, support delay-off recording.
14.Super mini size and easy-installation design. Continuous monitoring under the environment of -30°C~70°.
15.Free platform software, mobile App, web, client App, for professional and effective fleet management.


Product Parameter

Operation system
Linux
Network type
2G,3G,4G
RAM
2GB
DSM cam
HD 720P cam
Other cam
HD 720P cam
Position
Support dual module GPS+BDPrecision ≤10m(95%)



starting time,warm reboot ≤5s, cold reboot ≤45s



WiFi
2.4GIEEE 802.11b/g/n
Speaker
8Ω, 1W, with audio cavity
Microphone
Single microphone, support echo and noise elimination
G-sensor
3-axis acceleration sensor
Loop denoising
Compatible with hardware loop denoising


Product Pictures

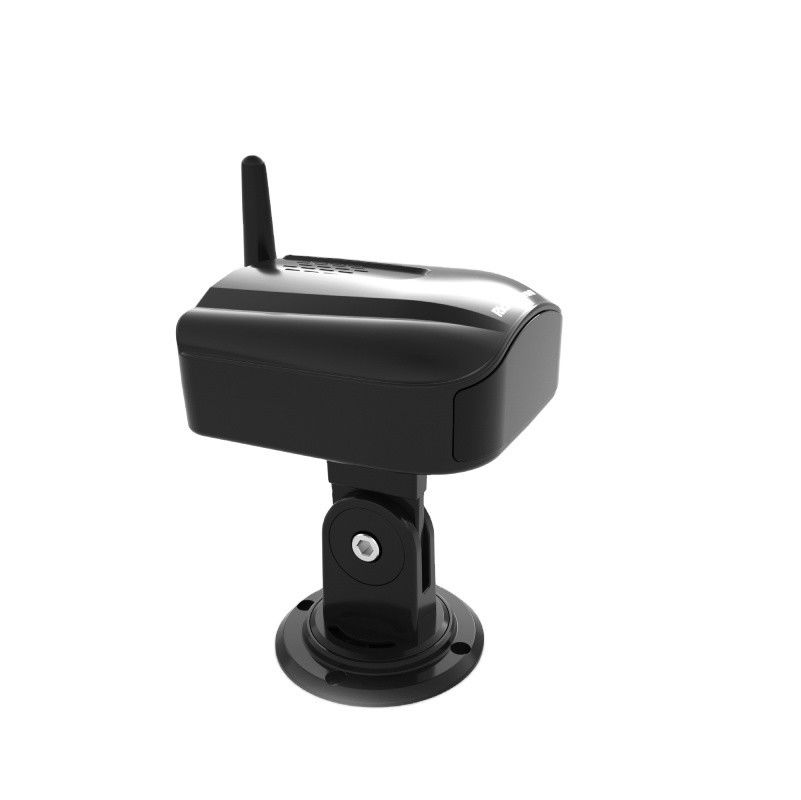

Car Monitoring System Mini 4g Dashcam With GPS Tracking And APP Control 0
Car Monitoring System Mini 4g Dashcam With GPS Tracking And APP Control 1
Car Monitoring System Mini 4g Dashcam With GPS Tracking And APP Control 2Car Monitoring System Mini 4g Dashcam With GPS Tracking And APP Control 3
