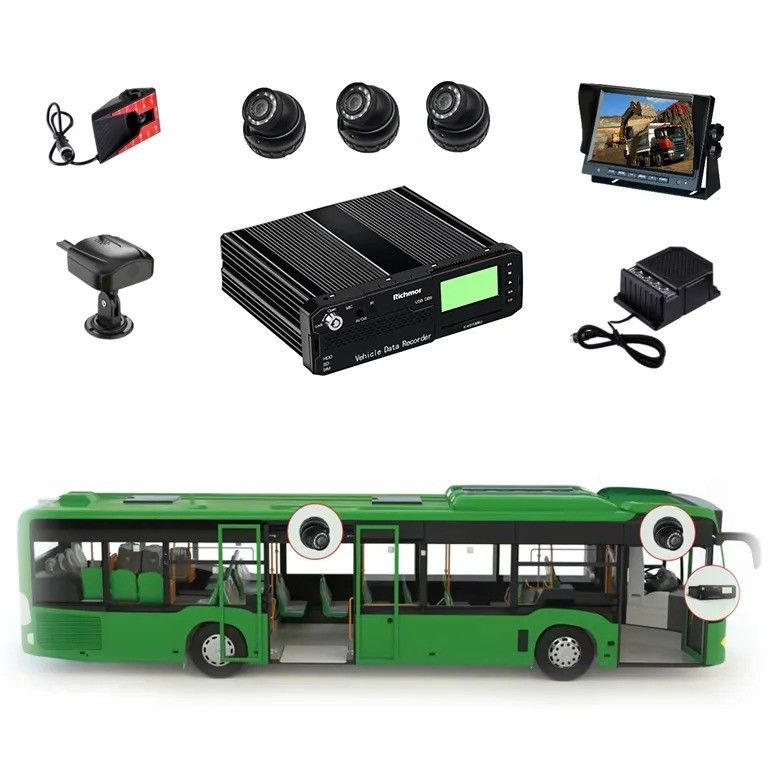

Passenger Counting Solution Mobile Video Recorder 8CH 1080P Resolution

Main Features

1 DIN size 8CHAHD Mobile DVR with Front monitor: 132 * 64 dot matrix,

dot spacing 0.39 * 0.39mm; display 4 lines of status information

2.The unique pre-allocated MDVR system: file fragments caused by repeated erasure,

data loss caused by storage system crash, unable to find the storage and file scrambling, and ensure the stability and integrity of data;

3.8v-36v auto-adaptive voltage input, support reverse connection protection,

over-voltage and over-current overload protection, output 12V@ 1A and 5V@ 1A Supply power to peripheral equipment.

4.Ultra low power consumption design; Support UPS technology, the machine can work for 8-11s in abnormal outage,

save data after outage, prevent data missing, disk damaging, and protect integral data.

5.Easy cost-effective Configuration via Mobile App, remote controller, or server platform remotely. And Silky intuitive and extraordinary OS system interface,

6.Gorgeous and powerful client program , providing real-time monitoring, monitoring intercom, playback, video recording, HD screenshot etc;

◆ Stalling delay recording function (Max 24 hours); Built-in 3.7v/600mAh (Max1200mAh) backup battery. Support GPS upload after vehicle outage.

◆ Protection of car accident outage: special UPS technology can make the machine work normally

for 8-11s when off the external power supply (including backup battery) , so as to ensure the integrity of video and facilitate accident

investigation

◆ Auto-video recording, manual video recording, alarm video recording and other video recording methods to meet different needs;

◆ Display and record vehicle driving status, license plate, routes, over speed ect for convenient management;

◆ Support GPS / BD, 4G,WiFi;

◆ Super strong network:through IE configuration menu, support SMS configuration parameters and access to device

information;

◆ Remote support for AV monitoring, two-way voice intercom, remote PTZ control, manual alarm, overspeed alarm , cross-border and route deviation alarm;

◆ 6CH IO alarm input (door opening and closing, lighting, steering, braking, reversing can be configured ), 2CH analog alarm input;

◆ 2CH alarm output, supporting linkage audible and visual alarm, oil cut-off and power-off

◆ Support local auto-photo-taking function of alarm input, and save at least 2000 pictures Built-in POS reader, support touching IC card to record driver's login/logout status.

◆Integrated ADAS (99% efficiency alerts: lane departure detection, front vehicle collision detection and warning advanced driving assistant system).

◆Integrated DSM,driver facial recognition (99% efficiency driver’s behavior alerts: Fatigue, Distract, Smoking, safe belt...)

◆Integrated BSD blind Spot detection algorithm (99% efficiency alerts for side people, vehicles, bicycles..)

◆ Integrated 360AVM and blind area detection, Passenger counter.

◆ Support TTS audio function Integrated 1CH pickup and 1CH loudspeaker for monitoring,

◆ Support Ministry of transport standard protocol, expandable PTZ control, oil fuel sensor, LED advertising etc;

◆ Support remote monitoring via phone and mobile phone call function;

◆ Customization functions which are based on customer requirements;

◆ Working temperature: - 30 ℃ ~ + 70 ℃ (printer and battery: - 20 ℃ ~ + 70 ℃)

◆ Software upgrade / OTA remote auto-upgrade via SD card, partition backup

◆ Size: 180mm * 60mm * 170mm

Product Parameter
