Place of Origin: | Guangdong, China |
Brand Name: | Richmor |
Model Number: | RCM-BK6MZ |
Main Features
1.1 channel 1080P analog high-definition video input
2.WIFI, 4G, BD/GPS, G-Sensor
3.SD Card Storage MAX 512G
4.Support start and stop control
6.Support seatbelt detaction
7.Supports speed limit and supports Hall speed sensor access (indoor speed sensor)
8.DMS supports face recognition, smoking recognition, and helmet recognition (optional)
9.BSD function(optional)
Product Details
1.Integrated 4G/3G module, enabling remote monitoring and management with CMS.
2.Integrated GPS/BD positioning module to manage speed, location, time and route.
Support positioning module abnormality and antenna abnormality alarms.
3.Support connecting external speed sensor, realizing accurate positioning in the absence of satellite signals indoors.
4.Built-in 3-axis G-SENSOR to realize automatic alarm uploading of abnormal vibration, rollover, impact, etc.
5.Integrated WIFI module to support fast configuration with mobile phone under AP mode.
6.Made of cast aluminum+PC+ABS+nylon plastic material. It is light-weight and is waterproof and vandal-proof
(IP67, 2-meter drop resistance), suitable for outdoor work, rain-proof, and not easy to be damaged.

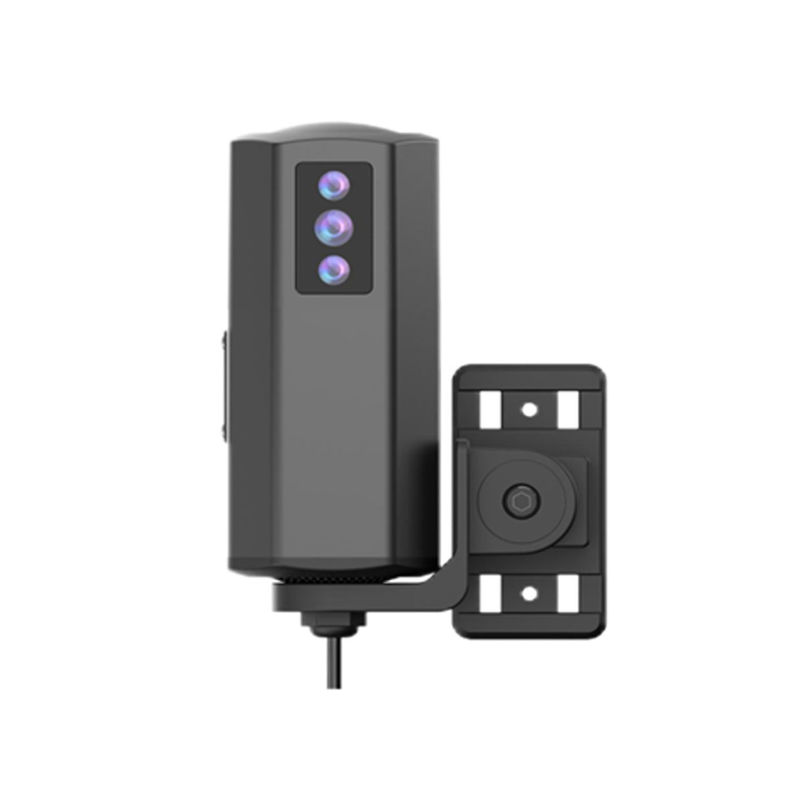

7.The mounting bracket is professionally designed to adapt to different car models (adapted to square/round tubes).
Can be installed on A-pillar or B-pillar.
8.The whole device can be adjusted up, down, left and right to achieve the best monitoring angle.
9.After adjusting to the appropriate position, it is locked and fixed with screws to prevent the driver
from adjusting the camera angle and to prevent shock. Supports 355° left and right, 90° adjustment up and down.
10.Ultra-high integration, built-in camera, infrared lights (supports monitoring in low-light and no-light environment),
GPS antenna, 4G antenna, WIFI antenna. Simple and convenient installation and connection.
11.The whole machine has an extremely high reliability design and can achieve continuous monitoring in an environment of -30°C to 75°C.
Has good anti-tamper and dustproof design to ensure that the TF card, SIM card and connection port are not damaged.
12.1 channel audio input. Integrated high-sensitivity MIC, can record audio, and supports voice intercom.
Integrated speaker that can perform audio broadcasts and early warning prompts.
13.5 status indicators, which can observe the working status of the device in real time.
14.An external alarm button (SOS) is connected, which supports the alarm button to trigger emergency alarm and capture pictures.
15.Supports navigation line separation and area entry and exit alarms. The device can save up to 16 lines and areas.
16.9V~110V adaptive wide voltage input, ultra-low power consumption. Support reverse connection protection, overvoltage,
overcurrent and overload protection, support 12V power output.
17.Supports TF card storage, a single card supports up to 512G, and supports hot swapping.
3 channels of alarm input, 1 channel of alarm output (supports relay control of vehicle start and stop).
18.1 channel of RS232. Supports extended serial port, external sound and light alarm or LED light/reminder screen.
19.Support Face ID and DSM function. Can connect one channel of blind spot camera can realize blind spot warning function.
20.Ultra-low power consumption design, less heat generation and fast startup!
Professional platform software can realize remote monitoring and management functions of computers and mobile phones.
Product Parameters
Basic parameter | operating system | Linux |
Network format | 4G/3G | |
Integrated camera | AHD 1080p camera(If need DMS, will be Infrared, black and white) | |
Other cameras (external, optional) | 1ch AHD 1080P/720P | |
Hardware features |
position
|
GPS+BD, positioning accuracy ≤10m (95% probability) |
Positioning time, hot start ≤5s, cold start ≤45s | ||
WiFi (AP mode) | 2.4G; IEEE 802.11b/g/n | |
Speaker | 4 Ω 2W, with sound chamber | |
MIC | Single microphone, supports echo and noise cancellation | |
G-sensor | 3-axis gravity acceleration sensor | |
Loop noise cancellation | Compatible with hardware loop noise cancellation | |
Interface | video interface | Supports expansion of 1-channel video |
SIM card holder | SIM card holder*1 (medium card) | |
Storage | TF card slot*1 (max 512GB) | |
Communication Interface | Integrated 1-way RS232 serial port | |
CAN port | Optional, 1 channel | |
Network port | Optional, 1 channel | |
Alarm input | 2CH IO input | |
Alarm output |
2CH 12V IO output channel (5V), can be linked to sound and light alarm , power relay, speed control sensor, etc. |
|
light/button | indicator light | 5 status lights |
Alarm function | SOS alarm, supports external emergency alarm button implementation | |
Antenna | BD/GPS antenna | Built-in/external available |
4G antenna | Built-in | |
WIFI antenna | Built-in | |
Shut down mode | ACC mode | Turn off when ignition is off |
Delay time |
After ignition is off, device is still on for a period of time, then turns off or go to sleep mode. |
|
Low-power sleep mode | In low-power sleep mode, GPS data is transmitted regularly. | |
Power | power input | 9-110V wide voltage input |
Working current |
12V 0.35A without infrared (MAX) 12V 0.5A turns on infrared (MAX) |
|
low power mode | 12V 0.08A | |
Others |
Operating temperature |
-30℃-75℃ |
Storage temperature | -40℃-85℃ | |
Dimensional weight (diameter*height) | 56φ*120mm |
Basic parameter | operating system | Linux |
Network format | 4G/3G | |
Integrated camera | AHD 1080p camera(If need DMS, will be Infrared, black and white) | |
Other cameras (external, optional) | 1ch AHD 1080P/720P | |
Hardware features |
position
|
GPS+BD, positioning accuracy ≤10m (95% probability) |
Positioning time, hot start ≤5s, cold start ≤45s | ||
WiFi (AP mode) | 2.4G; IEEE 802.11b/g/n | |
Speaker | 4 Ω 2W, with sound chamber | |
MIC | Single microphone, supports echo and noise cancellation | |
G-sensor | 3-axis gravity acceleration sensor | |
Loop noise cancellation | Compatible with hardware loop noise cancellation | |
Interface | video interface | Supports expansion of 1-channel video |
SIM card holder | SIM card holder*1 (medium card) | |
Storage | TF card slot*1 (max 512GB) | |
Communication Interface | Integrated 1-way RS232 serial port | |
CAN port | Optional, 1 channel | |
Network port | Optional, 1 channel | |
Alarm input | 2CH IO input | |
Alarm output |
2CH 12V IO output channel (5V), can be linked to sound and light alarm , power relay, speed control sensor, etc. |
|
light/button | indicator light | 5 status lights |
Alarm function | SOS alarm, supports external emergency alarm button implementation | |
Antenna | BD/GPS antenna | Built-in/external available |
4G antenna | Built-in | |
WIFI antenna | Built-in | |
Shut down mode | ACC mode | Turn off when ignition is off |
Delay time |
After ignition is off, device is still on for a period of time, then turns off or go to sleep mode. |
|
Low-power sleep mode | In low-power sleep mode, GPS data is transmitted regularly. | |
Power | power input | 9-110V wide voltage input |
Working current |
12V 0.35A without infrared (MAX) 12V 0.5A turns on infrared (MAX) |
|
low power mode | 12V 0.08A | |
Others |
Operating temperature |
-30℃-75℃ |
Storage temperature | -40℃-85℃ | |
Dimensional weight (diameter*height) | 56φ*120mm |
